Clamp On Ultrasonic Flowmeter

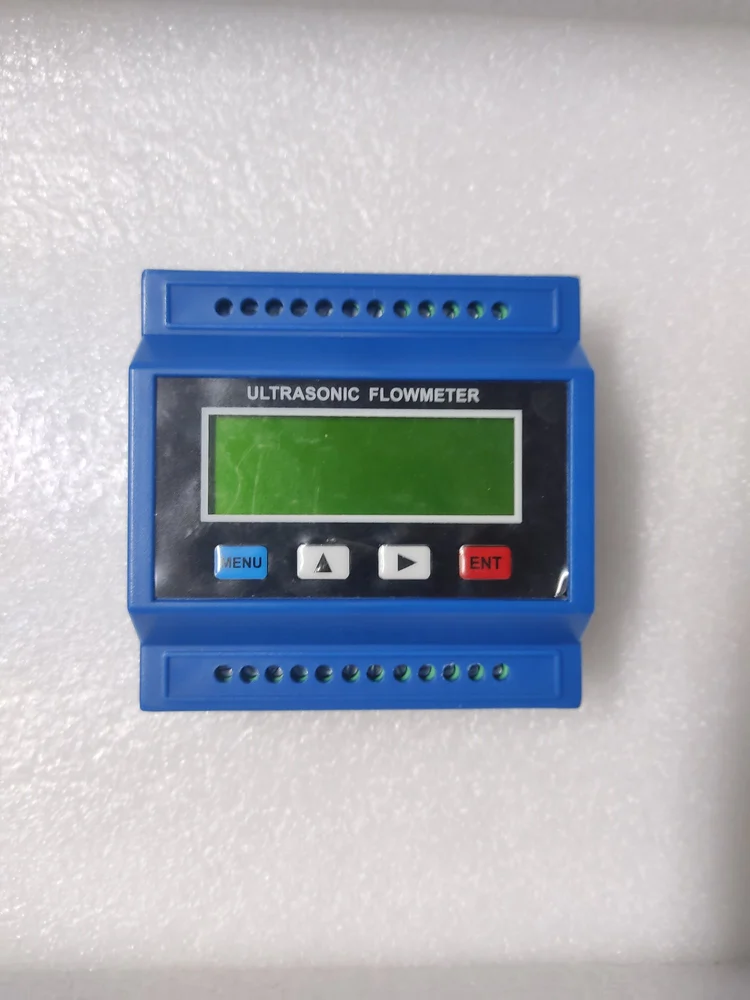

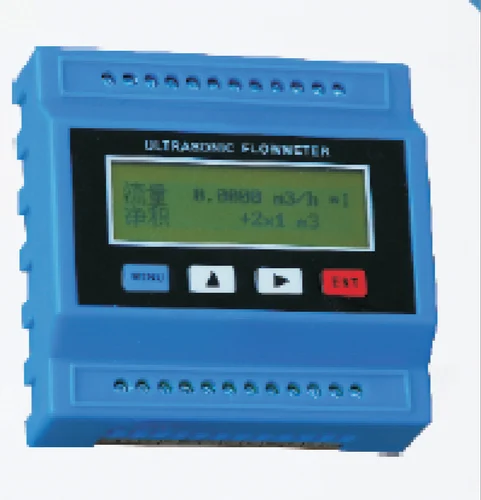

The TUF-2000M is a compact clamp-on BTU ultrasonic flow meter designed for heat and energy measurement in hot water, chilled water, and HVAC applications. Using transit time ultrasonic technology, it measures volumetric flow rate and, combined with Pt100 temperature transducers, calculates thermal energy consumption in GJ. Its compact ABS converter makes it ideal for panel mounting or tight installation spaces where the TUF-2000S wall mount variant may not be suitable.

Key Features:
- Transit time ultrasonic measurement principle for non-invasive flow measurement
- Accuracy ±1% with 0.2% repeatability
- LCD display for local flow and energy readings
- RS485 Modbus communication interface for remote monitoring
- 4-20mA output for integration with control and SCADA systems
- Supports TS-2, TM-1, and TL-1 clamp-on transducers
- Wide pipe diameter range: DN15 to DN6000mm
- Line size range for BTU application: DN25 to DN100
- Bi-directional flow measurement
- Flow velocity range: 0 to ±7m/s
- Medium temperature range: -30 to 160°C
- Built-in 24K data logger for continuous logging
- Energy measurement in GJ units
- Compact ABS converter: 95 x 95 x 35mm
- Low power consumption of 1.5W
- Power supply: 24V AC/DC
- Accuracy Class 3 for energy metering

Applications:
- Hot water and chilled water heat metering
- HVAC energy monitoring
- District heating and cooling systems
- Industrial process heat measurement
- Building energy management
- Water treatment plants
- Industrial flow monitoring
