HM-USB-ISO HART Modem - USB
Electrically isolated USB HART modem with 1500 Vdc opto isolation, HART Foundation registered, enabling reliable PC communication with HART field devices and transmitters.
Key Specifications
Applications
Product Description

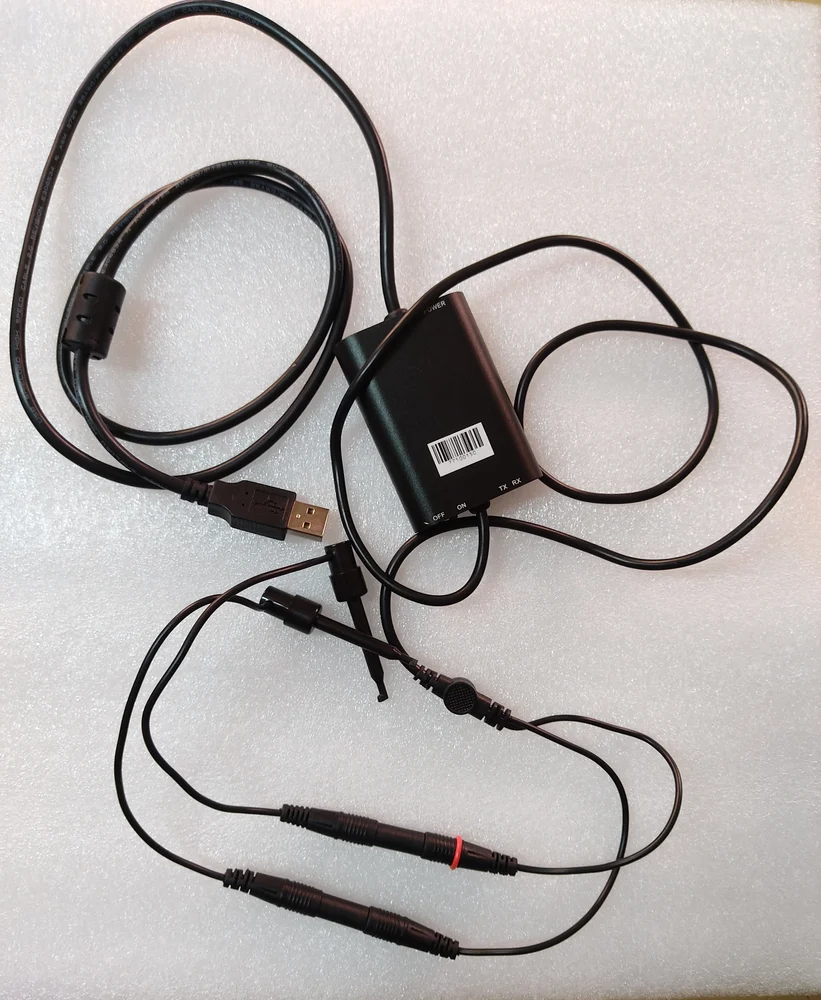

The HM-USB-ISO HART Modem - USB is an electrically isolated communication interface that enables a PC to communicate with HART-enabled field devices, transmitters, and valves. Featuring 1500 Vdc opto isolation between the HART and USB circuits, it ensures safe, reliable signal transfer during configuration, calibration, and diagnostics in industrial environments.
Key Features:
- 1500 Vdc opto isolation between HART and USB circuits
- USB 1.1 and 2.0 compatible
- Integral standard USB Type A connector
- Integral heavy duty HART Minigrabber connectors
- Certified to meet HART Physical Layer Spec HCF_SPEC-54
- Self powered via USB, no external power supply or batteries needed
- 48 inch (1.2m) HART cable length
- Easy to install Virtual Serial Port for any Windows application
- Compact size: 2.75 x 2.0 x 0.8 inches (70 x 51 x 20mm)
- Rugged ABS plastic enclosure
- Custom cable lengths available
- Banana plug option available (HM-USB-ISO-BP)
- HART Modem Test Program included
- HART Foundation Registered, Registration Number L2-06-1000-070
- CE certified
- Each unit 100% tested before dispatch
- 1 year warranty
Applications:
- HART field device configuration and commissioning
- Transmitter and control valve diagnostics
- Calibration and maintenance of process instruments
- Process automation and instrumentation servicing
- Pharmaceutical, chemical, and power plant instrumentation support
