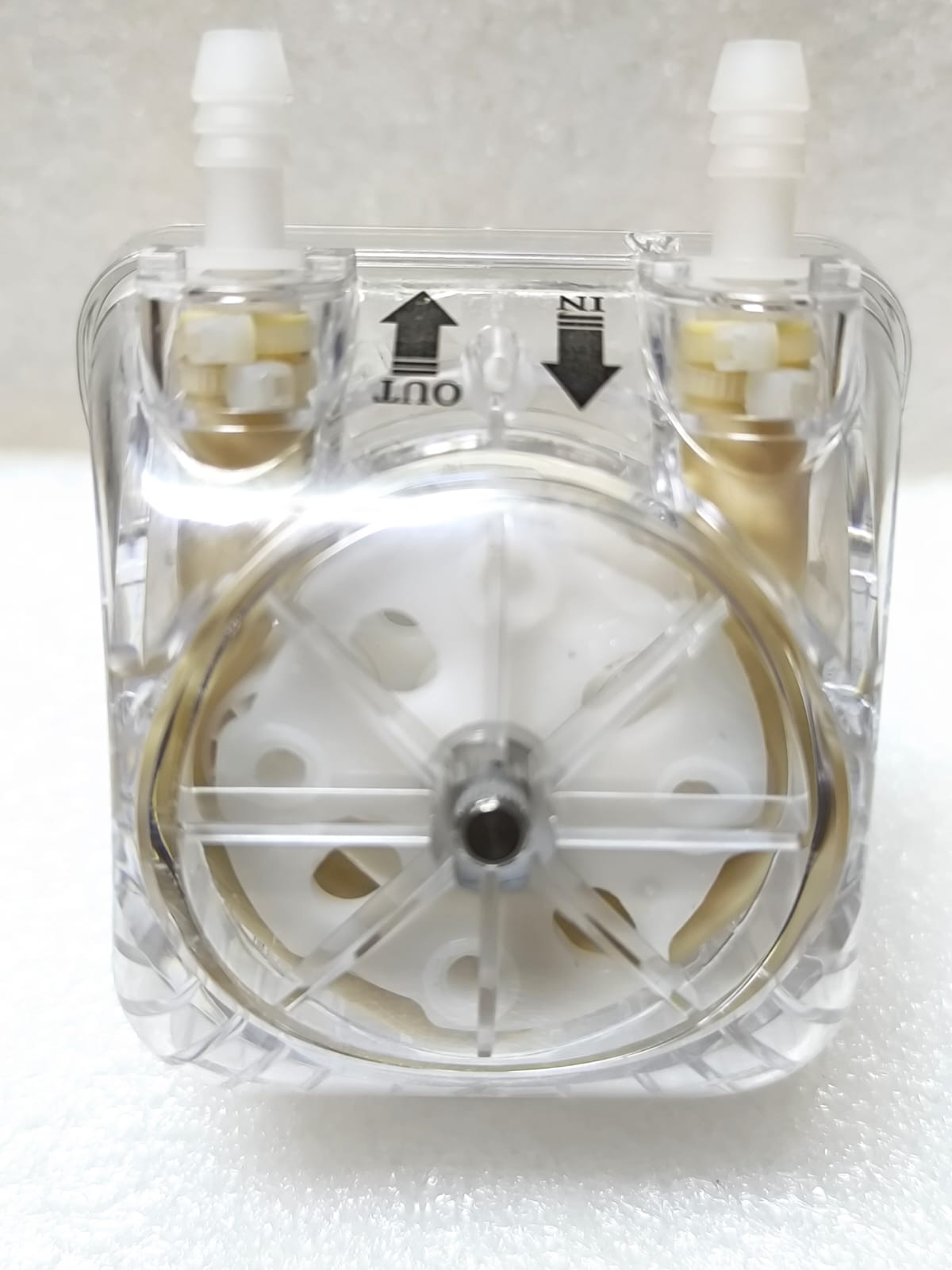

HPP Series Peristaltic Pump — VISA Pvt. Ltd Chennai

Available

Peristaltic Pump Fluid Handling

HPP Series Peristaltic Pump

Name: HPP Series Peristaltic Pump
Brand: VISA Pvt. Ltd
Availability: InStock

Get Best Quote

High-performance peristaltic pump, 1000 ml/min, reversible CW/CCW, IP rated for industrial and lab use.

Key Specifications

Flow Rate

1000 ml/min ±10%

Duty Cycle

Continuous

Motor Type

DC Brush Motor

Net Weight

230g

Noise Level

75 dB at 30cm

Model Number

HPP-24-1000-ZB-2-P

External Tube

5.5mm ID

Input Voltage

24V DC

Flow Direction

CW/CCW Reversible

Vacuum Suction

30 kPa min

External Fitting

Polypropylene barbed fitting

Motor Insulation

UL Insulation Class B

Peristaltic Tube

PharMed BPT

Tube Reliability

600 loading hours

Number of Rollers

Outline Dimensions

86 x 76 x 107 mm

Pump Head Material

Transparent Polycarbonate

Storage Temperature

-10°C to +70°C

Pump Head Dimensions

86 x 76 x 37 mm

Current at Rated Flow

1.0A max

Operating Temperature

-10°C to +50°C

Output Fluid Pressure

40 psi min

Gear Motor Reliability

600 loading hours

Input Resistant Pressure

2 psi min

Current at Maximum Loading

2.5A max

Recommended Loading Pressure

18 psi

Applications

Pharmaceutical Food and Beverage Water Treatment Chemical Dosing Laboratory Industrial Automation

WhatsApp Us

Download Brochure

HPP Series Peristaltic Pump — PDF Datasheet

Genuine Product

Fast Delivery

Expert Support

Need help? Call us: +91 94453 50717

Product Description

The HPP Series Peristaltic Pump from Peripump is a high-performance, reliable pump designed for precise fluid transfer in industrial, laboratory, pharmaceutical and food processing applications. The HPP-24-1000-ZB-2-P model operates on 24V DC and delivers a flow rate of 1000 ml/min with plus or minus 10% accuracy.

Key Features:
- Reversible CW/CCW flow direction for flexible installation
- Transparent polycarbonate pump head for easy visual monitoring
- PharMed BPT peristaltic tube — ideal for pharmaceutical and food grade applications
- 2-roller design for smooth and consistent flow
- Continuous duty cycle operation
- Compact and lightweight design — 230g net weight
- Barbed fitting made of polypropylene for easy tube connection
- Compatible with 5.5mm ID external tubing
- DC Brush Motor with UL insulation class B compliance

Technical Specifications

Flow Rate 1000 ml/min ±10%

Duty Cycle Continuous

Motor Type DC Brush Motor

Net Weight 230g

Noise Level 75 dB at 30cm

Model Number HPP-24-1000-ZB-2-P

External Tube 5.5mm ID

Input Voltage 24V DC

Flow Direction CW/CCW Reversible

Vacuum Suction 30 kPa min

External Fitting Polypropylene barbed fitting

Motor Insulation UL Insulation Class B

Peristaltic Tube PharMed BPT

Tube Reliability 600 loading hours

Number of Rollers 2

Outline Dimensions 86 x 76 x 107 mm

Pump Head Material Transparent Polycarbonate

Storage Temperature -10°C to +70°C

Pump Head Dimensions 86 x 76 x 37 mm

Current at Rated Flow 1.0A max

Operating Temperature -10°C to +50°C

Output Fluid Pressure 40 psi min

Gear Motor Reliability 600 loading hours

Input Resistant Pressure 2 psi min

Current at Maximum Loading 2.5A max

Recommended Loading Pressure 18 psi
