Head Mounted Temperature Transmitter 4-20mA
Head mounted DIN B temperature transmitter with universal RTD/TC sensor input and 4-20mA output. PC configurable with ±0.1°C accuracy, ideal for compact field-mounted temperature measurement.
Key Specifications
Applications
Product Description

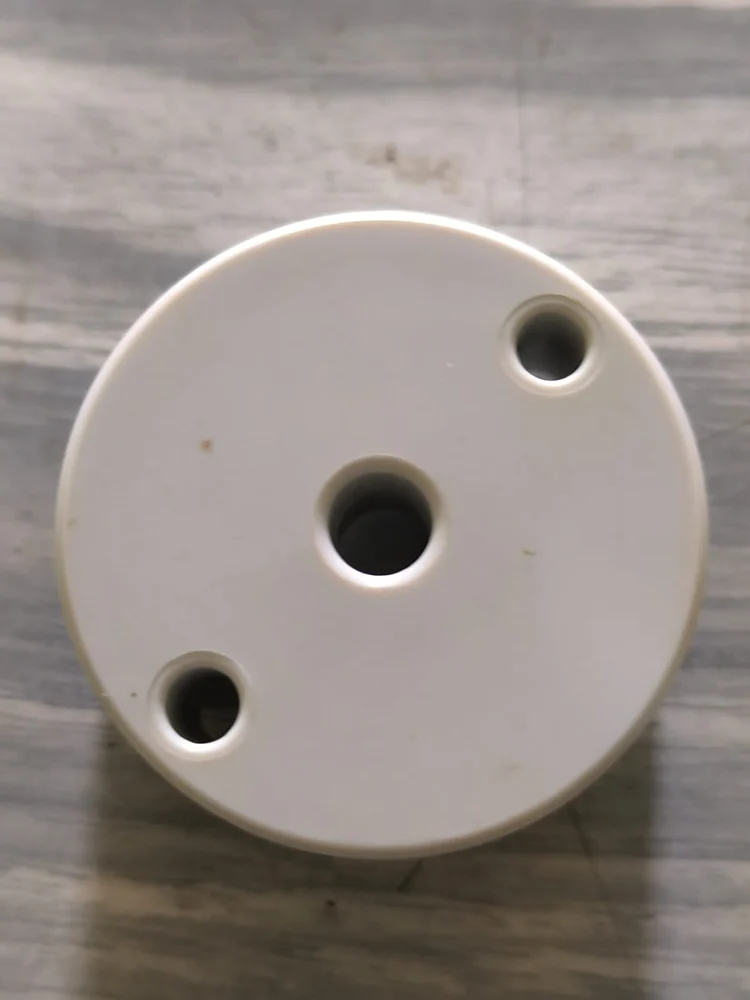

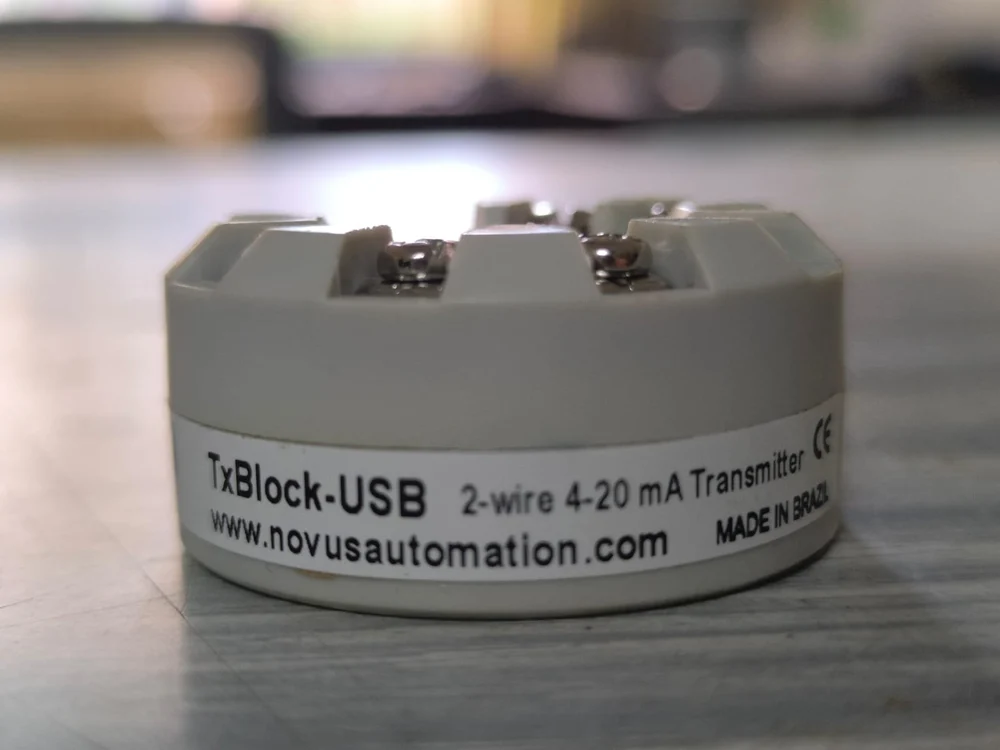

The Head Mounted Temperature Transmitter 4-20mA is a compact, customer-programmable transmitter designed to fit directly inside a DIN B connection head on the sensor. It accepts universal RTD and thermocouple inputs and converts the signal into a standard 4-20mA output, making it ideal for space-constrained field installations.
Key Features:
- Universal sensor input supporting RTD and thermocouple types
- DIN B head mount form factor for direct sensor housing fitment
- 2-wire loop powered 4-20mA output
- PC configurable via RS232 cable with Windows configurator software
- Non isolated design for compact, cost-effective installation
- High accuracy of ±0.1°C
- Wide operating temperature range of -40 to 85°C
- Supply voltage range of 12-30V DC
- Cold junction compensation for thermocouple inputs
- Manual zero (offset) adjustment via wire jumper
- Compact 44mm diameter design for easy retrofit into existing sensor heads
Applications:
- Process Automation
- Industrial Temperature Monitoring
- Pharmaceutical Equipment
- Food and Beverage Processing
- Chemical Processing
- Power Plants
- HVAC Systems
- Manufacturing
Technical Specifications
