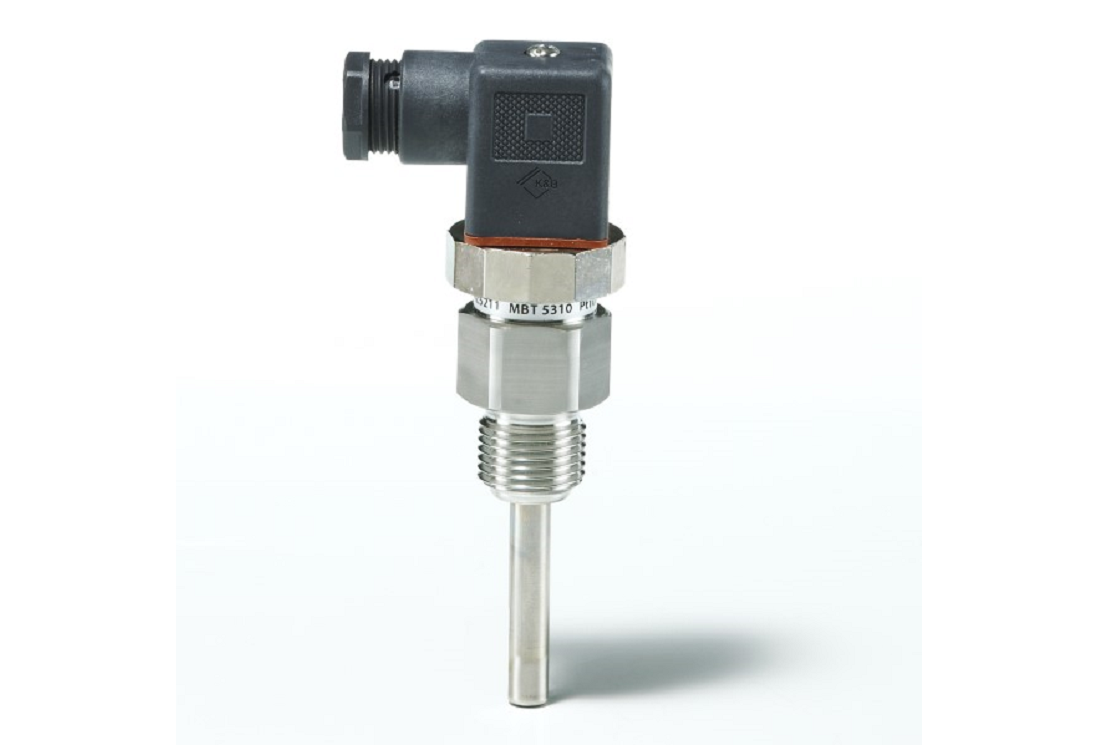

RTD Temperature Sensor TSOK

Get Best Quote

Pt100 RTD temperature sensor with two-wire 4-20mA current output, vibration-proof stainless steel design and IP65 protection. Measuring range -50°C to +200°C.

Key Specifications

Model
TSOK
Linearity
to measured value
Input Type
Pt100 (w=1.385)
Output Type
2-wire 4-20mA
Stem Length
20 to 300mm (step 5mm)
Non-linearity
within measurement error
Stem Diameter
6mm or 8mm
Media Pressure
Max 25 Bar
Measuring Range
-50°C to +200°C (6 ranges available)
Mounting Thread
M16, M18, M20, 3/8 inch, 1/2 inch
Sheath Material
Stainless Steel 1.4301 or 1.4571
Ambient Humidity
0 to 98% RH
Protection Class
IP65
Maximum Line Load
750Ω at 24V/20mA
Measurement Error
0.2% from span or 0.2°C
Temperature Drift
0.01% of span for 1°C
Ambient Temperature
-40°C to +85°C
Power Supply Voltage
10 to 32 VDC
Electrical Connection
Connector DIN 43650
Output at Sensor Burnout
32 mA
Output at Sensor Shorted
0.2 mA

Applications

Automotive Rail Vehicles Construction Machinery Industrial Process HVAC Oil and Gas
WhatsApp Us
Download Brochure
RTD Temperature Sensor TSOK — PDF Datasheet
Genuine Product
Fast Delivery
Expert Support
Need help? Call us: +91 94453 50717

Product Description

The RTD Temperature Sensor TSOK measures temperature using a Pt100 sensitive element and converts it into a standard 4-20mA two-wire current signal. Built with a robust vibration-proof stainless steel sheath rated IP65, the probe interior is filled with special compound protecting the electronics from harsh ambient conditions.

Key Features:
- Pt100 sensitive element for accurate temperature measurement
- Two-wire 4-20mA standard current output
- Easy and fast DIN 43650 connector for quick electrical decoupling
- Vibration-proof robust design
- Compact small dimensions
- High protection class IP65
- Optional local indicator TI200 with alarms available
- Six different measuring temperature ranges from -50°C to +200°C
- Various stem diameters, lengths and stainless steel types available

Applications:
- Automotive and rail vehicle temperature monitoring
- Construction machinery
- Industrial process temperature measurement
- HVAC systems
- Oil and Gas temperature sensing
- Chemical processing plants

Technical Specifications

Model TSOK
Linearity to measured value
Input Type Pt100 (w=1.385)
Output Type 2-wire 4-20mA
Stem Length 20 to 300mm (step 5mm)
Non-linearity within measurement error
Stem Diameter 6mm or 8mm
Media Pressure Max 25 Bar
Measuring Range -50°C to +200°C (6 ranges available)
Mounting Thread M16, M18, M20, 3/8 inch, 1/2 inch
Sheath Material Stainless Steel 1.4301 or 1.4571
Ambient Humidity 0 to 98% RH
Protection Class IP65
Maximum Line Load 750Ω at 24V/20mA
Measurement Error 0.2% from span or 0.2°C
Temperature Drift 0.01% of span for 1°C
Ambient Temperature -40°C to +85°C
Power Supply Voltage 10 to 32 VDC
Electrical Connection Connector DIN 43650
Output at Sensor Burnout 32 mA
Output at Sensor Shorted 0.2 mA
